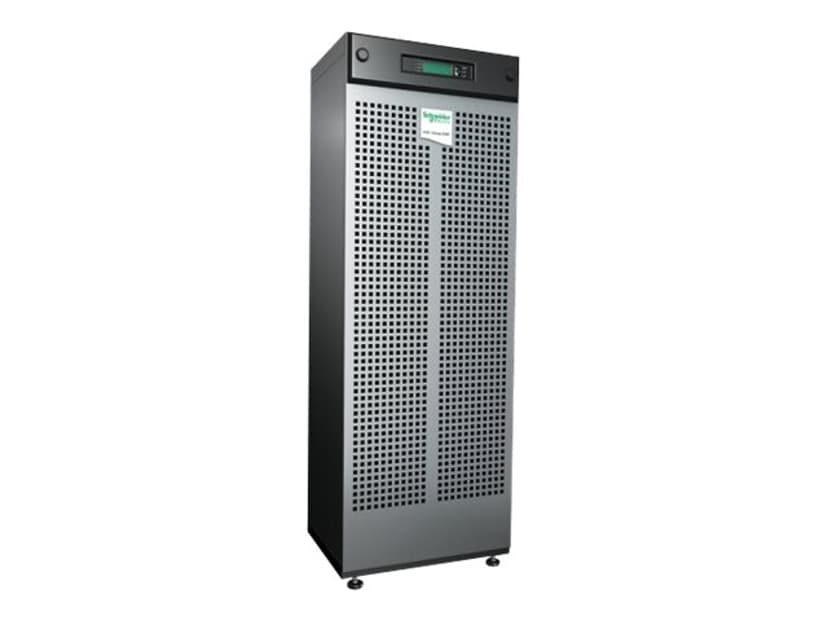

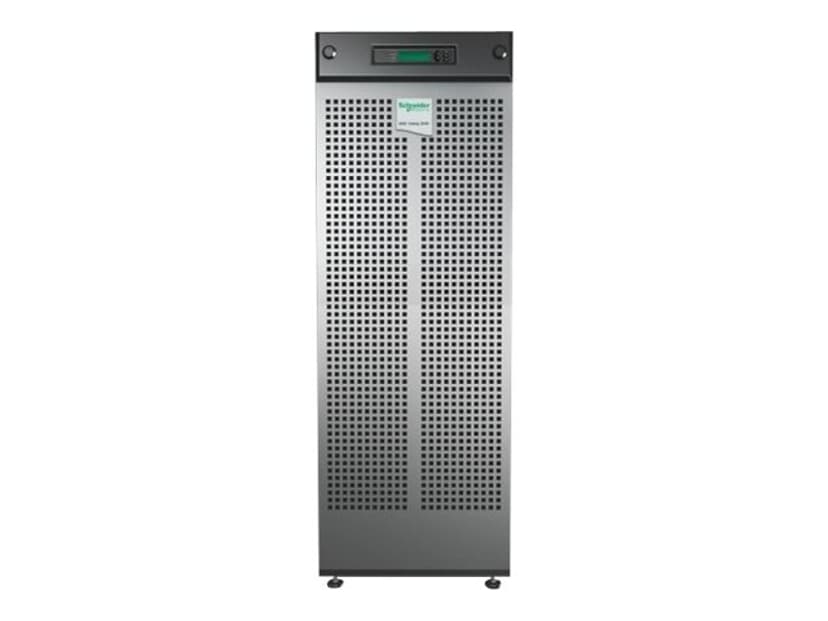

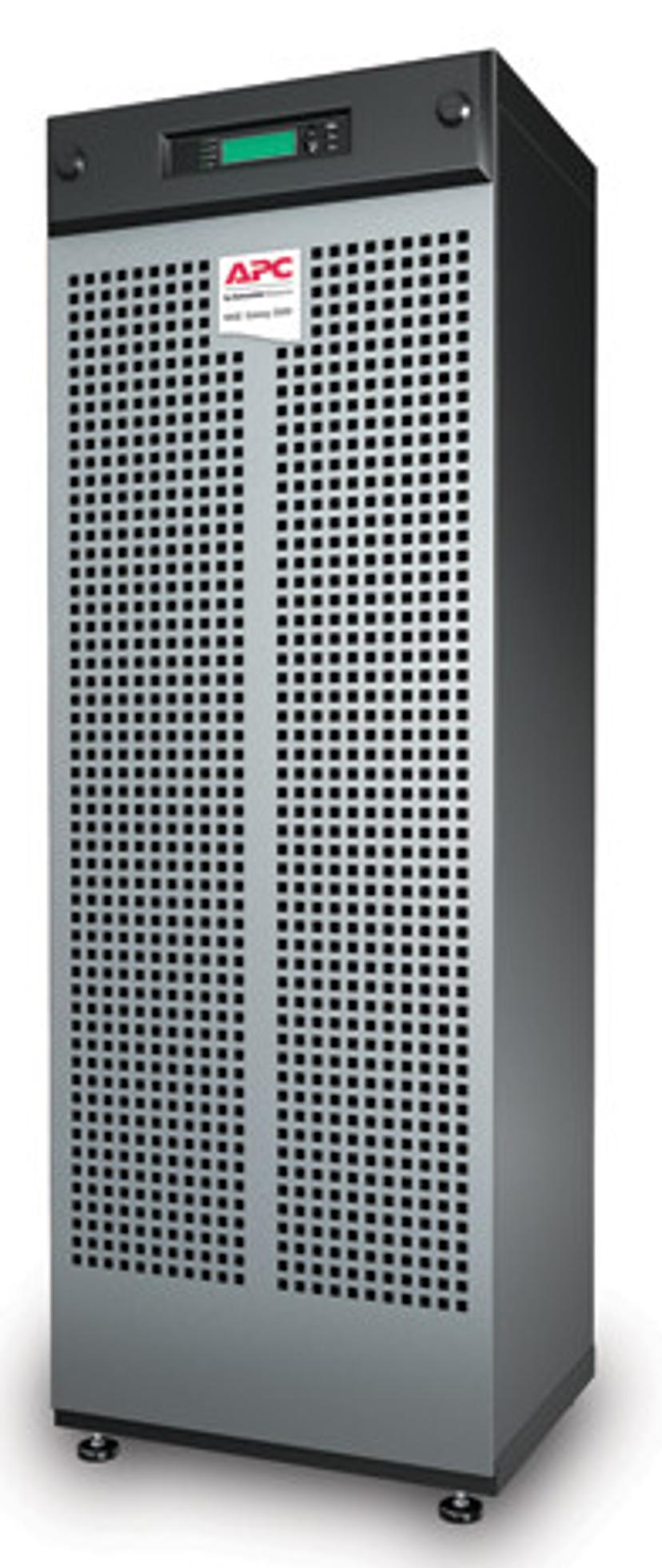

APC MGE Galaxy 3500 with 3 Battery Modules Expandable to 4

79 629 kr 2 468 krpr. måned (Delbetaling 36 måneder)
  • Lagerstatus: Bestillingsvare. Ukendt leveringstid.
  • Forsendelse fra: 299 kr
Bemærk at dette produkt er en skaffevare. Produktet kan derfor ikke annulleres eller returneres, når du har bekræftet din bestilling. Du kan læse mere i vores handelsbetingelser under afsnit 7.
  • Varenummer
  • 5010823106
  • Prod. varenr.
  • G35T20KH3B4S


16000 Watt
Strømkapacitet (VA)
20000 VA
Antal udgangsforbindelser


  • Dual mains input
  • Parallel-redundant capable
  • Parallel-capacity capable
  • Advanced electrical features
  • Frequency and voltage regulation
  • Automatic internal bypass
  • Input power factor correction


MGE Galaxy 3500 offers centralized 3 phase power protection with the reliability of the MGE product family. Ideal for commercial and technical facilities as well as industrial applications, the MGE Galaxy 3500 includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. The parallel capability for redundancy and capacity, and extended run battery frames provide increased flexibility. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators. The built in network management card with temperature monitoring provides remote monitoring and management through a simple web/SNMP interface. Serviceability is greatly enhanced by user-replaceable batteries, front access servicing. All these features make the MGE Galaxy 3500 the easiest UPS in its class to deploy, manage and maintain.


Producent APC
Farve Grå
Sound Emission
Sound emissions 51.3 dB
Antal udgangsforbindelser 3
Generelt / Produkttype UPS
Power Device / Input Connector(s) 1 x hardwire 5-wire (3PH + N + G)
Power Device / Surge Suppression Yes
Input Voltage Range AC 304 - 477 V
Power Device / Power Output Connectors Details 1 x hardwire 4-wire (3PH + G) ¦ 1 x hardwire 5-wire (3PH + N + G) ¦ 1 x Terminal Block (Screw)
Device Type UPS - external
Genopladningstid 5 time(r)
Driftstid (op til) 0.195 time(r)
Battery technology Lead Acid
Included accessories
Included Accessories Bolt down brackets
Expansion / Connectivity
Expansion Slot(s) SmartSlot
Interfaces 1 x management (Ethernet) - RJ-45 ¦ 1 x management (RS-232) ¦ 1 x EPO (emergency power off)
Compliant Standards
Compliant Standards ISO 9001, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, EN 50091-2, IEC 62040-3, IEC 62040-1-1
Features Audible alarm, emergency power off, LCD display, built-in maintenance bypass, built-in static bypass
Service & Support
Service & Support 1-års garanti
UPS-teknologi On-line
Strømforsyning 16000 Watt
Strømkapacitet (VA) 20000 VA
Maks. elektrisk strøm 27 A
Mål og vægt
Ydermål bredde 52.3 cm
Ydermål dybde 83.8 cm
Ydermål højde 149 cm
Vægt 535 kg
Grænseflade til fjernstyring Ethernet 10/100, RS-232
