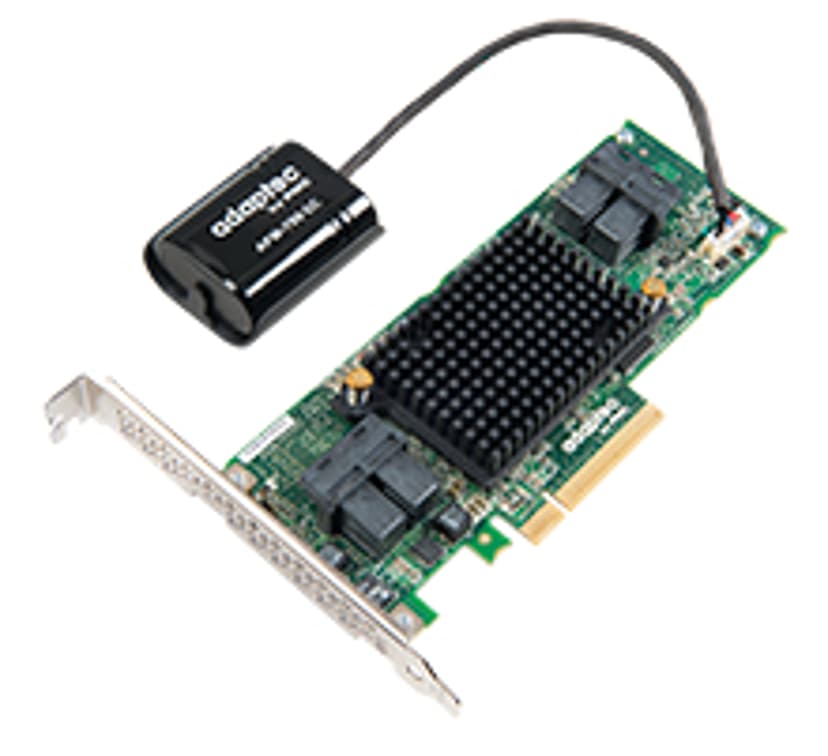

Adaptec 81605ZQ

6 699 kr 208 krpr. måned (Delbetaling 36 måneder)
  • Lagerstatus: Bestillingsvare. Ukendt leveringstid.
  • Forsendelse fra: 69 kr
  • Varenummer
  • 5010821607
  • Prod. varenr.
  • 2281600-R

Datablad

Interface
PCIe 3.0 x8
Storage Controller / Grænseflade
SATA 6Gb/s / SAS 12Gb/s

Nøglefunktioner

  • PMC's PM8063 RAID-on-Chip (ROC), x 8 PCIe generation 3 interface with 12 Gbps SAS ports to enable the performance
  • 16 native SAS/SATA ports in a LP/MD2 design
  • 12 Gbps throughput with mini SAS HD connectors
  • More than 700K IOPS, 6.6 Gbps sequential reads, 5.2 Gbps sequential writes

Produktinformation

Data center, IT, and general consumer server environments have a broad range of requirements - from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success. Adaptec 12 Gbps PCIe generation 3 series 8 RAID adapters, coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS for the most performance-hungry transactional and database applications.

Single does not include cables

Datablad

Overskrift
Producent Adaptec
Antal pakker 1
Model 81605ZQ
Kompatibilitet Pc
Produktserie Adaptec
Controller for lagring
Interface PCIe 3.0 x8
Storage Controller / Grænseflade SATA 6Gb/s / SAS 12Gb/s
Storage Controller / Antal channels 16
Storage Controller / Model Indstikskort
Maks. antal lagerenheder 256
Storage Controller / RAID-niveau RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1E
Storage Controller / Understøttede enheder Harddisk, Diskarray (RAID), Solid state drev
Storage Controller
Data Transfer Rate 1.2 GBps
Generelt
Produkttype Styreenhed til lagring (RAID)
Software
Software Included Adaptec Storage Manager, Adaptec maxCache Plus
General
Device Type Storage controller (RAID) - plug-in card - low profile
Systemkrav
OS er påkrævet SunSoft Solaris, FreeBSD, Red Hat Linux, Ubuntu, VMware ESXi, SuSe Linux, Microsoft Windows, Debian Linux
Expansion / Connectivity
Interfaces 4 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) ( internal )
Compliant Standards
Compliant Standards UL, VCCI, C-Tick, FCC, RoHS, KCC
Driftstemperatur
Min. driftstemperatur 0 °C
Maks. driftstemperatur 55 °C
Service & Support
Service & Support 3 års garanti
Service & Support Details Limited warranty - 3 years
Mål og vægt
Ydermål dybde 16.7 cm
Ydermål højde 6.4 cm
