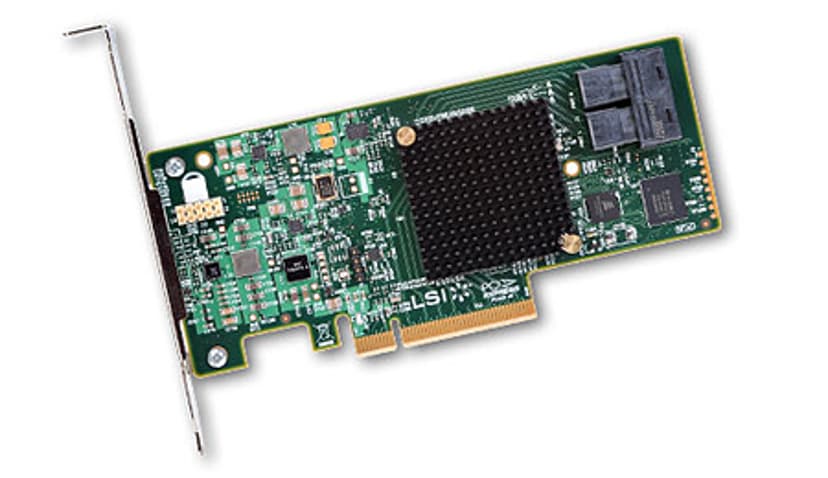

LSI SAS 9300-8i SGL

2 295 kr 71 krpr. måned (Delbetaling 36 måneder)
  • Lagerstatus: Anslået på lager: 12-12-2016
  • Forsendelse fra: 69 kr
  • Varenummer
  • 5010873535
  • Prod. varenr.
  • LSI00344

Datablad

Interface
PCIe 3.0 x8
Storage Controller / Grænseflade
SATA 6Gb/s / SAS 12Gb/s

Nøglefunktioner

  • Low-profile form factor
  • Mini-SAS HD connectors
  • LSI SAS 3008 12 Gbps SAS+SATA controller
  • Supports SSDs, HDDs, and tape drives
  • Provides connectivity in a low-profile form factor
  • 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
  • High performance with 12 Gbps SAS data transfer rates

Produktinformation

The LSI SAS 9300 host bus adapter family provides high performance for high-end servers connecting to large scale storage enclosures and for internal drive connectivity in 1U/2U servers and workstations. The SAS 9300 HBA family is based on the LSI SAS 3008 IO controller that integrates the enhancements in SAS and PCI Express technology. The adapters can reach over 1 million IOPs from a single IOC.The LSI SAS 9300 adapter family supports 8 PCI Express lanes that comply with the PCI Express 3.0 specification with 8 Gbps per lane. Each host bus adapter also supports 8 individual SAS ports operating at 12 Gbps. The adapters are backward compatible with previous PCIe and SAS generations through automatic negotiation and provide SAS data transfer rates of 12, 6, and 3Gbps per lane, and SATA data transfer rates at 6 and 3 Gbps per lane. LSI provides a complete suite of industry standard operating system drivers.

No cabels inluded.

Datablad

Overskrift
Producent LSI
Antal pakker 1
Model SAS 9300-8i SGL
Kompatibilitet Pc, Unix
Produktserie LSI
Controller for lagring
Interface PCIe 3.0 x8
Storage Controller / Grænseflade SATA 6Gb/s / SAS 12Gb/s
Storage Controller / Antal channels 8
Storage Controller / Model Indstikskort
Maks. antal lagerenheder 1024
Storage Controller / Understøttede enheder Harddisk, Bånddrev, Solid state drev
Storage Controller
Data Transfer Rate 1.2 GBps
Generelt
Produkttype Lagringskontrol
Software
Software Included Drivers & Utilities
General
Device Type Storage controller - plug-in card - low profile
Included accessories
Included Accessories Full-height bracket
Systemkrav
OS er påkrævet Novell NetWare, Linux, Microsoft Windows 2000, Microsoft Windows Vista, FreeBSD, Microsoft Windows Server 2008, Microsoft Windows XP, Microsoft Windows Server 2003
Expansion / Connectivity
Interfaces 2 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) ( internal )
Compliant Standards
Compliant Standards EN 60950, EN55022, EN55024, AS/NZS 3548, RoHS, WEEE, ICES, FCC CFR47 Part 15 B, EMC Class B
Miscellaneous
MTBF 2,800,000 hour(s)
Driftstemperatur
Min. driftstemperatur 0 °C
Maks. driftstemperatur 55 °C
Luftfugtighed ved drift 5 - 90% (non-condensing)
Service & Support
Service & Support 3 års garanti
Service & Support Details Limited warranty - 3 years
Mål og vægt
Ydermål dybde 15.2 cm
Ydermål højde 6.6 cm
