Aten Adapter

VGA (HD-15) Hun VGA (HD-15) Hun

729 kr
  • Lagerstatus: Leveres inden for 2-4 dage.
  • Forsendelse fra: 69 kr
  • Varenummer
  • 5010806410
  • Prod. varenr.
  • VS0104-AT-G

Datablad

Producent
ATEN Technology
Kontakttype venstre
VGA (HD-15)
Type til venstrekontakt
Hun
Højre forbindelsestype
VGA (HD-15)
Type til højrekontakt
Hun

Nøglefunktioner

  • One video input to 4 video outputs
  • Superior video quality
  • Supports up to 450 MHz bandwidth for high performance video
  • Long distance transmission
  • Supports VGA, SVGA, UXGA, WUXGA, and multisync
  • EDID expert - selects the optimum EDID settings for smooth power-up and high quality display
  • Expandable - provides up to 64 video displays



  • Features RS-232 serial port for command controls
  • RS-232 chain control - use RS-232 commands to control cascaded devices via VGA cable
  • Supports stereo audio
  • Plug-and-Play - no software installation required

Produktinformation

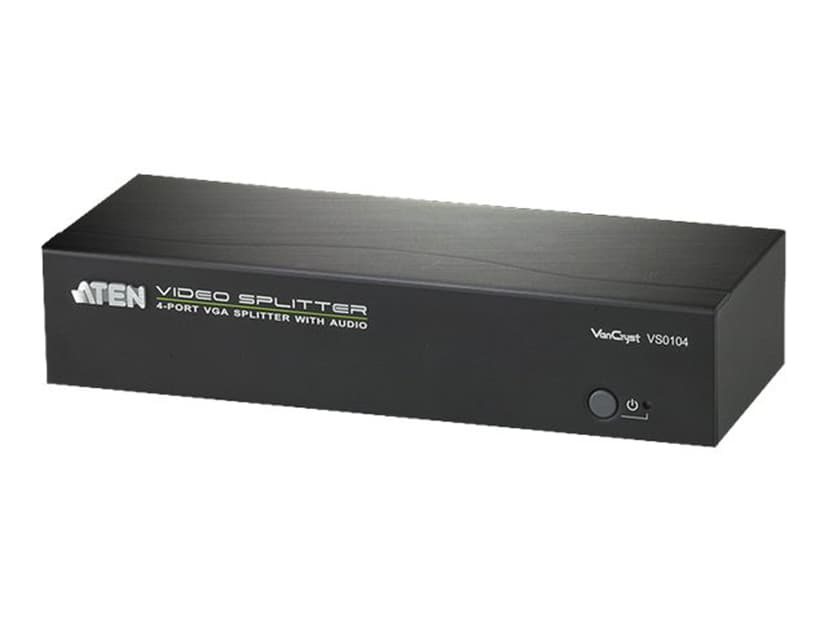

The ATEN VS0104 4-port VGA splitter with audio is VGA splitter that allow a single VGA video and audio signal to be distributed to four output displays with independent stereo control. The splitter support up to 450 MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920 x 1440.Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.The VS0104 is perfect for conference rooms, training facility and multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the high quality.

Datablad

Generelt
Maks. opløsning 1920 x 1440 @ 60 Hz
Kontakttype venstre VGA (HD-15)
Type til venstrekontakt Hun
Højre forbindelsestype VGA (HD-15)
Type til højrekontakt Hun
Farve Sort
Service & Support
Garanti 1 år
Mål og vægt
Ydermål bredde 26 cm
Ydermål dybde 7.61 cm
Ydermål højde 4.4 cm
