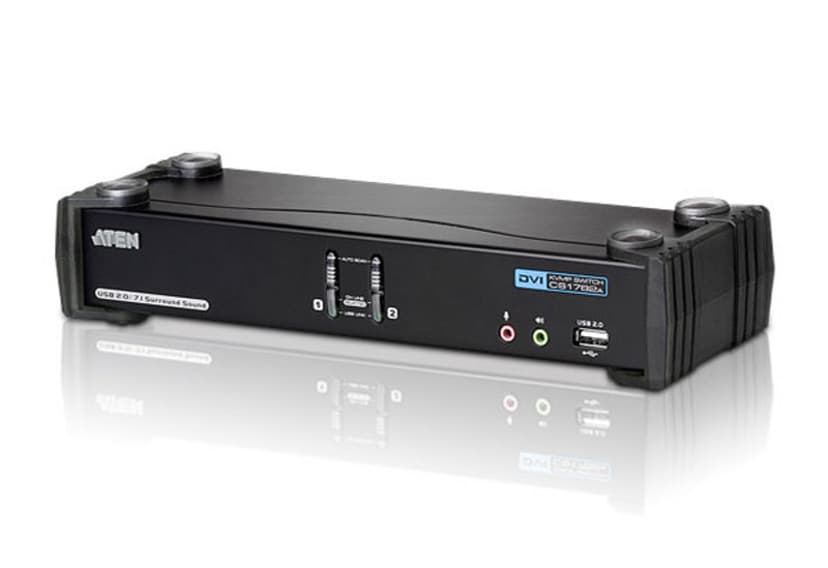

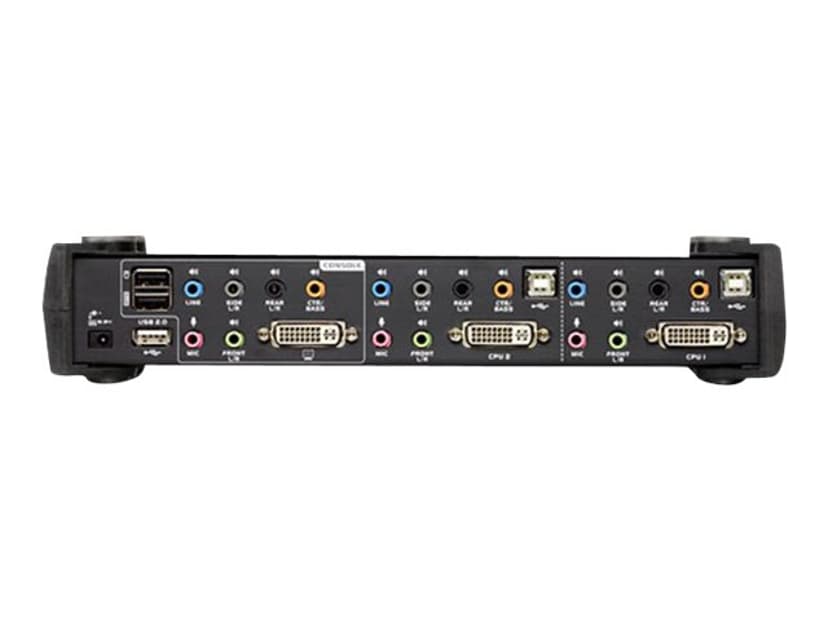

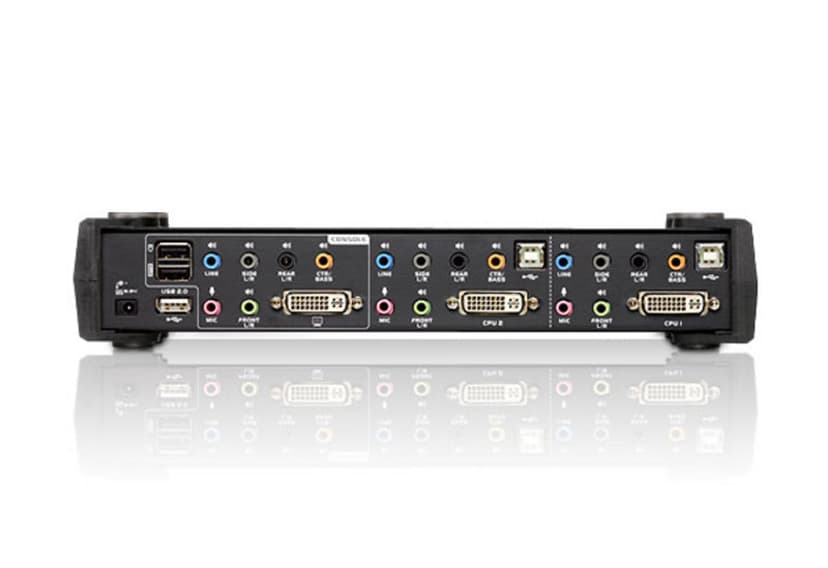

Aten CubiQ CS1782A

1 345 kr
  • Lagerstatus: Bestillingsvare. Ukendt leveringstid.
  • Forsendelse fra: 69 kr
  • Varenummer
  • 5010610594
  • Prod. varenr.
  • CS1782A

Datablad

Producent
ATEN Technology
Antal porte
2
Tilslutning Billede indgang
DVI-D
Tilslutning Mus/Tastatur indgang
USB
Tilslutning Billede udgang
DVI-D
Tilslutning Mus/tastatur udgang
USB

Nøglefunktioner

  • 2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound Audio
  • One USB console controls two computers and two additional USB devices
  • 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
  • Full bass response for high quality 7.1 channel surround sound systems
  • Computer selection via front panel pushbuttons, hotkeys, and mouse
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Independent switching of KVM, USB, and Audio focus



  • DVI digital and analog monitor support - fully compliant with the DVI specifications
  • Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link): Works with cutting edge 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080 for your ideal workspace and entertainment
  • HDCP compatible
  • Support widescreen resolutions
  • Video DynaSync - Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection - if one of the computers is powered off, the switch will automatically switch to the next powered-on computer
  • Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice

Produktinformation

Forbind to computere til et tastatur, mus, skærm og et 7.1 højttalersystem. Den har også to ekstra USB-porte til at tilslutte f.eks. printere eller eksterne lagerenheder til de to computere via KVM-Switch.

  • Uafhængig switching af KVM, USB og lyd.
  • Klarer maksimal opløsning på 2560x1600 ved 60Hz (dual-link) og 1920x1080 i 120Hz (3D).
  • To 1,8 meter lange kabler og en netadapter medfølger.
  • Mål (BxDxH): 270x87x55 mm.

Datablad

Tilslutninger
Konsol-tilslutninger 1 stk
Konsollens mus-/tastatur-tilslutning USB
Konsolskærm-tilslutning DVI-D
Computertilslutninger 1 stk
Computererns mus-/tastatur-tilslutning USB
Computerskærm-tilslutning DVI
Generelle tilslutninger
3,5 mm lydkontakt, hun 20 stk
DVI-I (Single Link) kontakt, hun 3 stk
USB-kontakt, hun 5 stk
USB 2.0-kontakt Type B, hun 2 stk
KVM-funktioner
Antal brugere 1 stk
Manuel switch Ja
USB-hubb Ja
Lyd Ja
Maksimal opløsning 2560 x 1600
19" format Nej
Generel information
Dimensioner (B x H x D) 270 mm x 55 mm x 87 mm
Vægt 900 g
