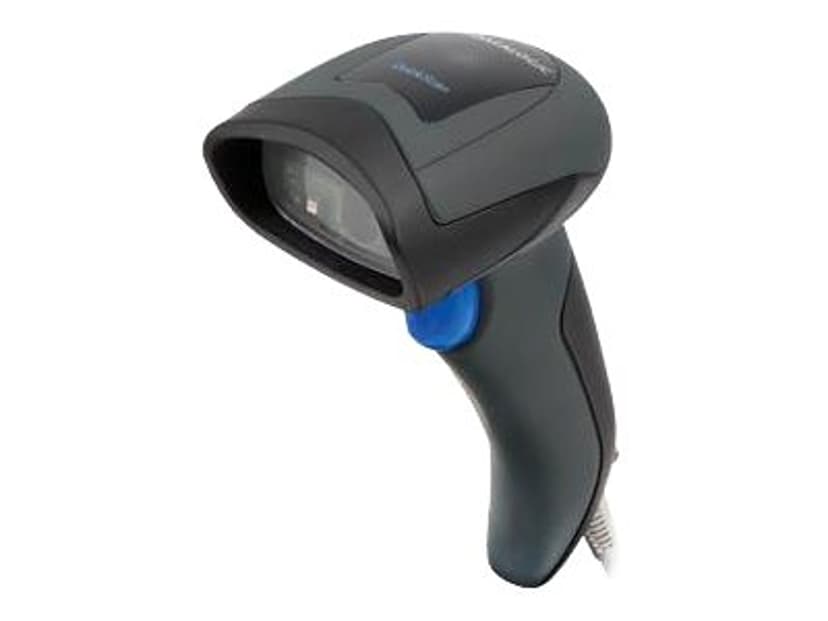

Datalogic QuickScan QD2430 2D USB-Kit Black + Stand

1 295 kr Ekskl. moms
  • Lagerstatus: Leveres inden for 2-4 dage.
  • Forsendelse fra: 69 kr
  • Varenummer
  • 5010783557
  • Prod. varenr.
  • QD2430-BKK1S

Produktinformation

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.The QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic's well-known durability.Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features an illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.

Datablad

Overskrift
Fabrikant Datalogic
Model QD2430
Kompatibilitet Pc
Scannerbånd
Type Stregkodescanner
Farve Sort
Scanningsmodus Enfaset
Scanningskomponenttype 2D imager
Specifikation ved fald 1,5 m fald på beton
TTL-afkodning Afkodet
Lyskilde bølgelængde 610-650 nm
Stregkoder Australske poststandard, Engelske poststandard, Canadiske poststandard, Kinesiske poststandard, Japanske poststandard, Kix (nederlandske) post, Koreanske post, MacroPDF417, Royal Mail, Micro QR kode, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, EAN/JAN, GS1 DataBar, QR-kode, MaxiCode, Aztec-kode, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET
Print Contrast Signal (PCS) 25%
Maksimale arbejdsafstand 35 cm
Skæv vridning (grader) 60
Pitch (grader) 65
Min. linjebredde 4 mil
Egenskaber Green Spot-teknologi
Overensstemmelsesstandarder RoHS, IP42
Medfølgende ledninger 1 x USB-kabel - ekstern
Indgangsudstyr
Forbindelsesteknologi Kabling
Grænsefladetype Tastaturkile, RS-232, USB
Interface krævet
Interface 1 x RS-232, 1 x USB, 1 x tastaturkile
Miljømæssige parametre
Min. driftstemperatur 0 °C
Maks. driftstemperatur 50 °C
Fugtighedsgrad ved brug 5 - 95 % (ikke-kondenserende)
Mål og vægt
Bredde 4.1 cm
Dybde 9.1 cm
Højde 16.3 cm
Vægt 145 g
Service & Support
Type 5 års garanti
Service & Support Begrænset garanti - 5 år
